Product Types
Mainly engaged in plating series of precision hardware, connectors, medical equipment, new energy, aerospace and military industries;
High level deep hole plating of electronic and medical connector products. POGP PIN Deep Blind Via Hole (1:10) ,Deep Plating Through Hole (1:50), Slender Through Hole OD < 0.5, diameter to depth ratio (1:30),100 % Plating coverage.
Precise probe products: 0.1mm~0.5mm in diameter IC needle through hole, Plunger, turnings and other coatings are excellent.The thickness of gold plating can reach 4-5um, stable and reliable.
For aerospace and military connector products, the gold plating thickness is 1-2um, and the strong bonding force is stable and efficient.
Electroplating for various types of materials
Reliability Testing Advantages
Multiple types of material electroplating
Artificial Sweat: Up to 600 minutes

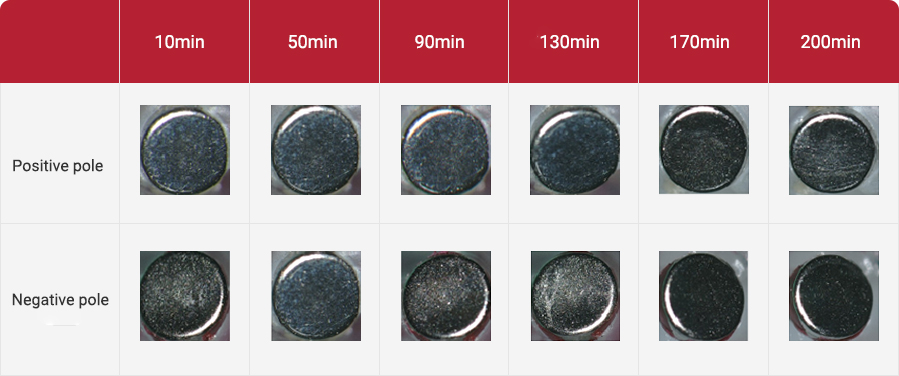

Electrolysis test (including regard product as positive pole): 20-200 minutes
Plating Advantages
Variety of plating layers: gold, silver, nickel, palladium, copper, platinum, palladium nickel, copper tin zinc, ruthenium, rhodium, rhodium ruthenium, platinum ruthenium, palladium cobalt, gun cobalt, tin, zinc nickel, nickel tungsten, silver tungsten, composite Plating
The Composite plating can reach up to 10 layers, which can meet the plating requirements of various functions.
Intimal membrane thickness:the inner membrane thickness of the hole can reach 80% of the outside of the tube.
Deep plating of gold-plated blind hole: 100% coverage of each plating layer in product holes with a hole depth ratio of 1:10.
The thickness of the platinglayer is large and uniform,the structure is fine,the adhesion is strong,the color is bright.
Thick gold plating: plating up to 4-5μm.
Palladium coating can reach 2-3μm without cracks.
Palladium nickel coating up to 2-3μm without cracks.
Platinum coating can reach 1-2μm.
Technical Team With Excellent R&D Ability
Continuously provide mature and diversified plating solutions
Professional Plating Team
A team of plating engineers with 20 years + industry experience to manufacture more consistent and high-quality products.
